Somfy Indoor Siren 110DB

Quick guide from the manual

This document provides essential instructions for installing and maintaining the Somfy Indoor Siren 110DB. The device is designed to work with the Somfy Protect ecosystem.

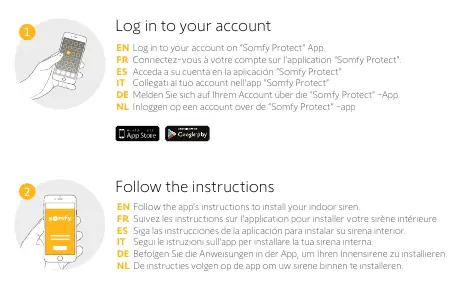

Installation

The installation process is fully guided by the mobile application. Follow these steps:

1. Download and log in to your account on the "Somfy Protect" App.
2. Follow the on-screen instructions within the app to pair and install your indoor siren.

Battery replacement

To replace the batteries, follow these steps:

• Important: Turn off your system before proceeding.
• Open the siren cover by rotating it in the direction indicated by the arrow.
• Remove the battery protection cover.
• Replace the batteries with 4 x 1.5 V Alcaline D batteries.

Technical specifications

• Wireless operating distance: Up to 200 m (in open air).
• Radio frequency: Somfy Protect (868-870 MHz, e.r.p < 25 mW).
• Battery life: Approximately 2 years (in normal use).
• Operating temperature: 0°C to 45°C.
• Dimensions: 175 x 45 mm.
• Weight: 985 g.
• Features: Tamper protection, double electrical insulation.

Safety and disposal

Do not dispose of this product with household waste. It is your responsibility to recycle electrical and electronic equipment through local collection systems. Ensure batteries are separated from other waste and recycled at a local recycling centre.
