User Manual for Tecnolite 100SOLLED131VCD65N Outdoor Solar LED Light
Quick guide for the Tecnolite 100SOLLED131VCD65N outdoor solar LED light. Includes installation steps, remote control operation, charging requirements, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
Before using your Tecnolite solar light, please note the following critical requirements for optimal performance:
- Initial Charge: The unit must be charged for a full 12 hours before its first use.
- Sunlight Requirement: Ensure the solar panel receives a minimum of 6 hours of continuous direct sunlight for daily charging.
- Installation Height: The recommended maximum installation height is 5.0 meters.
- Safety: Do not install near flammable materials. Use protective gear (gloves, glasses) during installation.

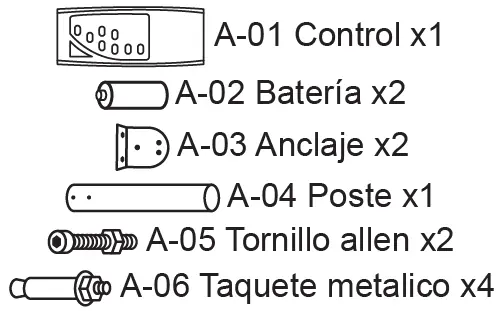

Product components
The package includes the following items:
- Solar light fixture
- Remote control (A-01)
- Batteries (A-02)
- Anchors (A-03)
- Pole (A-04)
- Allen screws (A-05)
- Metal plugs (A-06)
Installation
- Prepare the area: Ensure the mounting surface is suitable and the location receives adequate sunlight.
- Mounting: Secure the pole to the wall using the provided anchors and metal plugs.
- Attach the light: Fix the light fixture to the pole using the provided Allen screws and nuts.
- Safety check: Ensure all screws are tightened securely before finalizing the installation.

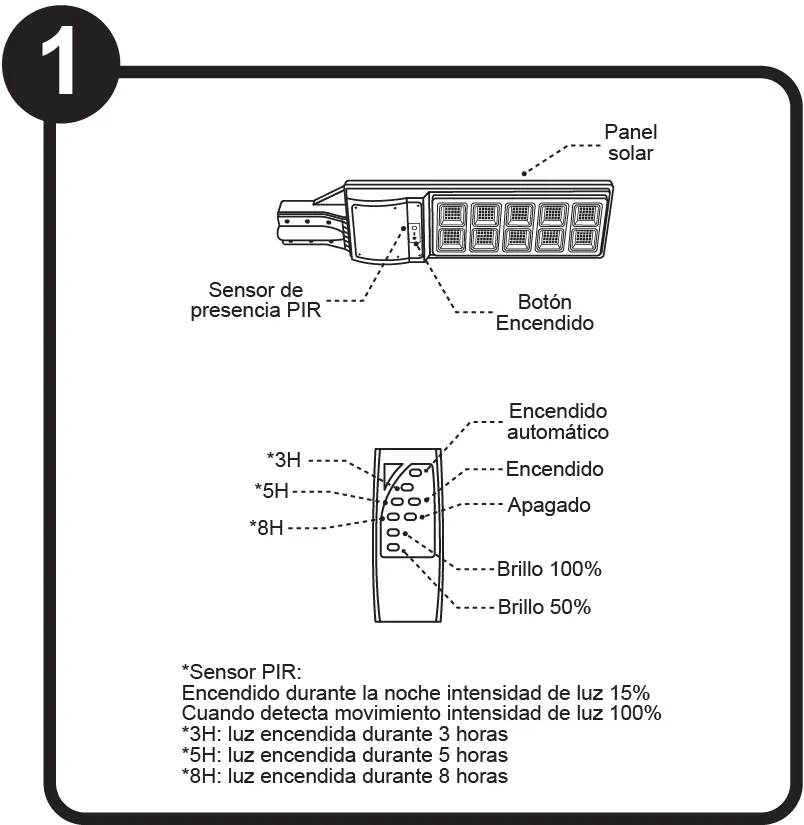

Operation and remote control
The light features a PIR motion sensor and a remote control for various settings:
- PIR Sensor Mode: The light stays at 15% intensity at night and increases to 100% intensity when motion is detected.
- Remote Control Functions: Use the remote to turn the light on/off, set brightness (50% or 100%), or set a timer (3H, 5H, or 8H).
- Range: The remote control has an effective range of 5 meters.
Charging and maintenance
To ensure the longevity of your solar light:
- Charging: Always ensure the solar panel is free from obstructions like trees or buildings that might block sunlight.
- Cleaning: Clean the light fixture and its internal parts periodically using a dry cloth. Do not use harsh chemicals.
- Maintenance: Disconnect the power source (if applicable) before performing any maintenance.
Manufacturer information
Tecnolite
Practical help
Common problems
Light does not turn on
Ensure the unit was charged for at least 12 hours before first use and that the solar panel is receiving at least 6 hours of direct sunlight daily.
Remote control not responding
Check that the batteries are installed correctly in the remote. Ensure you are within the 5-meter operating range.
Before use
- Charge the unit for 12 hours before first use
- Verify the installation location receives direct sunlight
- Check that all mounting hardware (anchors, screws) is present
- Install batteries in the remote control
- Ensure the mounting height does not exceed 5 meters
Specs in practice
- Charging Time
- Requires at least 6 hours of continuous sunlight to function properly.
- Installation Height
- Recommended maximum height is 5.0 meters for optimal sensor coverage.
Images and diagrams
- The remote control allows selecting timer modes (3H, 5H, 8H) and brightness levels (50%, 100%).
- The installation process involves securing the pole to the wall and attaching the light fixture.
Model compatibility
- Designed for outdoor use only.
- Not suitable for indoor installation.
