Tecnolite 10FLCLED05MV LED Strip Lamp
Quick guide for the Tecnolite 10FLCLED05MV LED strip lamp. Includes installation steps, wiring instructions, safety precautions, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and safety instructions for the Tecnolite 10FLCLED05MV LED strip lamp. Key requirements include ensuring the installation surface is suitable for the provided anchors (not included) and maintaining a minimum distance of 0.50m from any combustible materials. Always disconnect the power source before performing any installation or maintenance work.
Installation
The installation process involves mounting the fixture and connecting the electrical supply. Ensure you have the necessary tools, including a drill and protective gear.
- Prepare the surface: Mark the mounting points and drill holes. Insert the appropriate anchors (not included) for your specific wall or ceiling material.
- Mount the fixture: Secure the anchor clips (A-01) to the surface using the provided screws (A-02). Snap the lamp into the clips until you hear a click.
- Connect multiple units: If installing multiple lamps, use the connector (A-04) to link them together.
Wiring
The electrical connection must be performed safely. Ensure the power is off before proceeding.
- Use the provided cable (A-03) to connect the lamp to the power supply.
- The wiring must be connected to the Line, Neutral, and Ground wires.
- Note: The ground connection must be physical.
Safety and Maintenance
To ensure the longevity of the product and safety of the user, follow these guidelines:
- Safety distance: The lamp must be located at least 0.50m away from any combustible material to avoid fire hazards.
- Cleaning: Disconnect the power source before cleaning. Use a clean, dry rag to wipe the lamp and its internal parts.
- Handling: The lamp and other parts may become hot during operation; use gloves or allow the unit to cool before handling.
Technical Specifications
- Voltage: 100V-240V ~ 50Hz/60Hz
- Power: 10W
- Current: 0.15A - 0.08A
- Type: Indoor LED
Manufacturer information
Tecnolite
Practical help
Common problems
Lamp does not turn on
Check the power supply connection and ensure the wiring (Line, Neutral, Ground) is correctly secured.
Risk of fire
Ensure the lamp is installed at least 0.50m away from any combustible materials.
Overheating during maintenance
Allow the lamp to cool down before cleaning or handling, as the unit can become hot during operation.
Before use
- Verify that your power supply is between 100V-240V.
- Ensure the power is disconnected at the breaker before starting installation.
- Obtain appropriate anchors for your mounting surface, as they are not included.
- Confirm the installation location is at least 0.50m away from combustible materials.
- Ensure you have the necessary tools: drill, screwdriver, and protective gear.
Images and diagrams

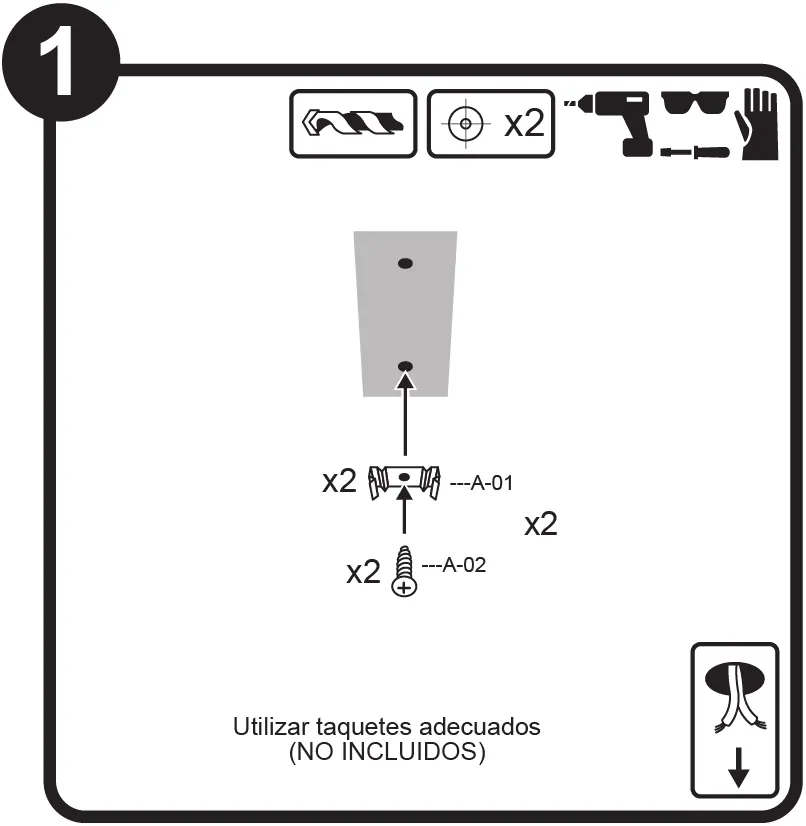

- Step 1: Shows the drilling process and the use of anchors (A-01) and screws (A-02).
- Step 2: Illustrates snapping the lamp into the clips and connecting multiple units with the connector (A-04).
- Step 3: Details the wiring connection for Line, Neutral, and Ground using the cable (A-03).
Model compatibility
- Designed for indoor use only.
- Compatible with multiple units connected in series using the provided connector.
