User Manual for Tecnolite 180CTL8370MVNCA Indoor Light
Quick guide for the Tecnolite 180CTL8370MVNCA indoor light. Includes installation steps, electrical specifications, safety warnings, and maintenance instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and safety instructions for the Tecnolite 180CTL8370MVNCA indoor light. Before beginning, ensure the power supply is disconnected. The installation requires a minimum distance of 0.50m from any combustible material to prevent fire hazards. Always ensure the ground connection is physical.
Installation
- Mounting: Secure the mounting bracket to the ceiling using the provided hardware.
- Drilling: Drill holes as required and insert the anchors (A-03) and screws (A-02) to fix the bracket (A-01) to the ceiling.
- Wiring: Connect the electrical wires (Line, Ground, Neutral) using the quick connectors (A-06). Ensure the ground connection is secure.
- Fixture Attachment: Attach the fixture base to the mounting bracket and secure it with the provided nuts.
- Bulb Installation: Install the three E27 bulbs into the sockets.
Electrical Specifications
The fixture is designed for the following electrical parameters:
- Voltage: 100V - 240V
- Frequency: 50/60 Hz
- Power: 25.5W total (8.5W x 3)
- Current: 0.26A
- Base Type: E27
Safety and Maintenance
Safety Warnings:
- Disconnect the power source before installation or maintenance.
- The lamp and other parts of the luminaire may become hot during operation. Allow them to cool down before handling.
- Use a clean, dry cloth to handle the lamp.
Maintenance:
- Disconnect the power source.
- Clean the luminaire and its internal parts with a dry cloth.
- Periodically check all electrical connections.

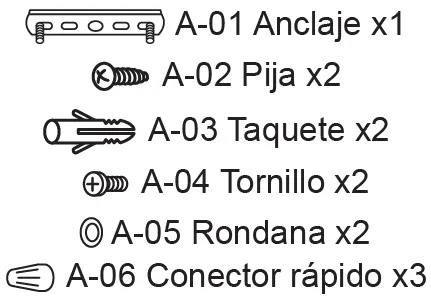

Parts List
The package includes the following components:
- A-01: Anchor bracket
- A-02: Lag screw (x2)
- A-03: Anchor (x2)
- A-04: Screw (x2)
- A-05: Washer (x2)
- A-06: Quick connector (x3)
