The LED's Light 190011 is a 2-way trailing edge dimmer designed for LED, halogen, and incandescent bulbs. Installation must be performed by a qualified electrician to avoid the risk of electrocution. The device features built-in thermal protection and soft-start technology to extend lamp life.

Safety Warnings

  • Electrocution Hazard: Always switch off the mains voltage before working on the wiring.
  • Thermal Protection: The dimmer has an integrated thermal protection circuit. It triggers at 120°C and resets at approximately 90°C. If this occurs frequently, reduce the connected load.
  • Installation: Must be protected on the installation side with a compliant circuit breaker.
  • Usage: Do not use if any part is damaged. Keep away from water (IP20 rating).

Technical Specifications

  • Voltage/Frequency: 220-240V ~ 50Hz
  • Max Load (LED): 5-150W
  • Max Load (HAL/INC): 10-300W
  • Dimming Technology: Trailing edge
  • Operating Temperature: 0°C - 45°C

Installation and Wiring

The dimmer is suitable for EU switch-mounting boxes. Follow these steps for installation:

ON/OFF switch circuit wiring diagram
ON/OFF switch circuit wiring diagram
2-way switch circuit wiring diagram
2-way switch circuit wiring diagram
  1. Disconnect the power supply and secure it against reconnection.
  2. Remove the existing wall switch.
  3. Connect the dimmer according to the wiring diagram (ON/OFF or 2-way circuit).
  4. Mount the cover frame and attach the dimmer knob.
  5. Turn the power back on and test the function.

Note: The dimmer must always be connected to the phase side of the load. Dimmers must not be connected in parallel or in series to a load.

Operation

Press the knob to turn the light ON or OFF. Turn the knob to the right to increase brightness and to the left to reduce it.

Adjusting Minimum Brightness

If you experience flickering or brightness fluctuations, you can adjust the minimum brightness:

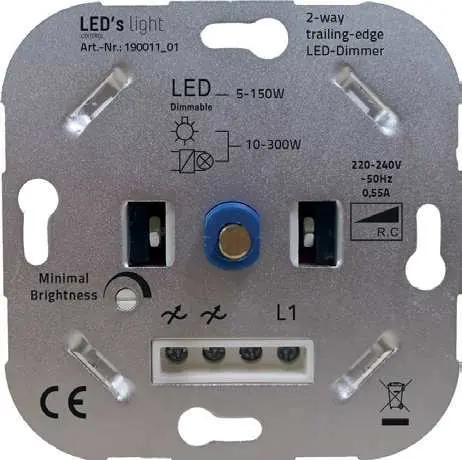

Dimmer unit with minimum brightness adjustment (A)
Dimmer unit with minimum brightness adjustment (A)
  1. Remove the front panel cover.
  2. Turn on the lamp to full brightness.
  3. Turn the button labeled 'Min. brightness (A)' to adjust the brightness down to the desired level.

Maintenance and Disposal

Disconnect the unit before cleaning. Do not use aggressive cleaning agents. This product is designated for separate collection; do not dispose of it with household waste.

Practical help

Common problems

Flickering or brightness fluctuations

Adjust the minimum brightness setting (A) on the dimmer unit while the lamp is at full brightness.

Dimmer gets too hot

Reduce the connected load. The thermal protection will reset automatically once the temperature drops to approximately 90°C.

Before use

  • Ensure you are a qualified electrician.
  • Verify the load is within 5-150W (LED) or 10-300W (HAL/INC).
  • Switch off mains voltage before starting.
  • Ensure the dimmer is compatible with your EU switch-mounting box.

Specs in practice

Trailing edge
Dimming technology suitable for LED, halogen, and incandescent bulbs.
Thermal protection
Automatically cuts out at 120°C and resets at 90°C to protect the unit.

Images and diagrams

  • ON/OFF switch circuit: Standard wiring for controlling a light from one location.
  • 2-way switch circuit: Wiring for controlling one light from two locations.

Model compatibility

  • Suitable for dimmable LED lighting, incandescent lamps, high-voltage halogen, and low-voltage halogen lamps with electronic transformer.
