Uniview Connect Box User Guide

Quick Guide

The Uniview Connect Box is designed to improve the installation and commissioning efficiency of cameras. It provides solutions for common construction problems, including IP address modification, temporary power and network supply, and voltage detection. It is a lightweight, portable device suitable for deployment in environments without electricity or network access.

Packing List

Ensure the following items are included in your package. Contact your local dealer if any items are damaged or missing:

• Connect box
• 12V power cable
• Anti-drop protective case
• Lanyard

Appearance and Interfaces

The device features several indicators and ports for operation:

• System indicator: Steady on after powering on.
• Wi-Fi indicator: Steady on after enabling hot-spot; blinking when transmitting data.
• Battery indicator: Shows current battery level.
• Voltage detection: Tests voltage in the range of 0 to 56V.
• 12V output: Supplies power for IPC (Maximum DC 12V 1A).
• PoE output: 802.3af PoE power supply (Maximum DC 48V 0.25A).
• PoE test: Tests if the output voltage of the external PoE power supply device is normal (Range: 0 to 56V).

Note: Press the Reset button and hold for at least 10 seconds to restore default Wi-Fi configuration. Long press the power button to turn the box off.

Device Management

Follow these steps to manage your devices using the Connect Box:

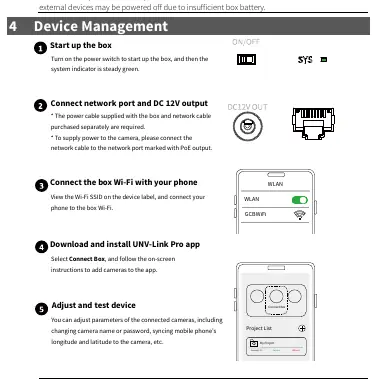

1. Start up the box: Turn on the power switch. The system indicator should be steady green.
2. Connect network and power: Use the supplied power cable and a network cable (purchased separately). Connect the network cable to the port marked with PoE output to supply power to the camera.
3. Connect Wi-Fi: View the Wi-Fi SSID on the device label and connect your phone to the box's Wi-Fi.
4. App setup: Download and install the UNV-Link Pro app. Select Connect Box and follow the on-screen instructions to add cameras.
5. Adjust and test: Use the app to adjust camera parameters, such as changing names, passwords, or syncing location data.

Safety and Network Security

To ensure safe operation and network security, observe the following:

• Battery Safety: Turn off the box when not in use to extend battery life. Battery performance may degrade at low temperatures. Avoid high/low temperatures and pressure during storage and transport. Do not replace the battery yourself or dispose of it in fire.
• Power Usage: The DC12V output and PoE output cannot be used at the same time to prevent power failure due to insufficient battery.
• Network Security: Change the default password immediately. Keep firmware updated. Disable UPnP if not needed. Isolate the video surveillance network from other service networks.
• Installation: Ensure the device is installed on a flat surface with adequate ventilation. Do not stack devices.
