Quick Guide

The V-TAC 160W Folding Solar Panel is designed for portability and efficient energy absorption. It features a 2-in-1 installation system, allowing you to either hang the panel or use the built-in kickstands for optimal sun exposure. The unit includes an integrated solar charger box with multiple output ports to charge various devices and portable power stations.

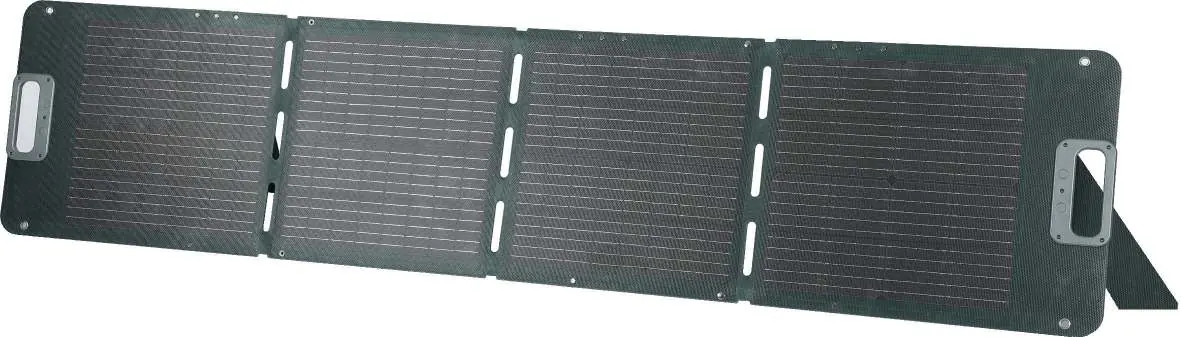

V-TAC 160W Folding Solar Panel
V-TAC 160W Folding Solar Panel

Installation Methods

  • Hanging: Suitable for hanging the panel anywhere to save space.
  • Kickstands: Use the integrated kickstands to position the panel at an angle, making it more efficient at absorbing solar energy.

Technical Specifications

The following electrical data applies to the 160W solar panel under standard test conditions:

  • Standard Working Power: 160W (-5%, +10%)
  • Standard Working Voltage: 17.6V
  • Standard Working Current: 9.08A
  • Open Circuit Voltage (Voc): 21.2V
  • Short Circuit Current (Isc): 9.75A

Output Solar Charger Box

The panel is equipped with a variety of output ports to support different charging needs:

Integrated charging cable and box
Integrated charging cable and box
  • DC 5521: 19.3V (-5%, +10%) working voltage, 160W working power.
  • Type-C: Supports 5V/3A, 9V/3A, 12V/3A, 15V/3A, 17.6V/2.25A (45W).
  • USB-A: 5V/2.4A.
  • USB-A (QC3.0): Supports 5V/3A, 9V/2A, 12V/1.5A (18W).

Compatibility

This solar panel is compatible with various portable power stations, including V-TAC models such as 300W (SKU 11441), 500W (SKU 11442), 1000W (SKU 11443), and 2000W (SKU 11445).

Maintenance and Handling

The panel features a 1x4 folding method for easy transport. Ensure the panel is kept clean and free of obstructions to maintain maximum efficiency. When not in use, fold the panel and store it in a safe, dry place.

Practical help

Common problems

Low power output

Ensure the panel is fully unfolded and positioned directly towards the sun. Check for shadows or debris on the surface.

Device not charging

Verify that the cable is securely connected to the correct output port (DC 5521, USB-A, or Type-C) and that the device is compatible with the output voltage.

Before use

  • Inspect the solar panel for any physical damage or cracks.
  • Ensure the panel is fully unfolded on a stable surface or hung securely.
  • Verify that the charging cable is properly connected to the solar charger box.
  • Check that the output port matches the requirements of your device or power station.

Specs in practice

Voc (Open Circuit Voltage)
The maximum voltage the panel can output when not connected to a load. Important for ensuring compatibility with power station input limits.
Isc (Short Circuit Current)
The maximum current the panel can produce. Used for sizing cables and fuses.

Images and diagrams

  • The panel uses a 1x4 folding method for compact storage.
  • The solar charger box is located on the panel and contains the DC 5521, USB-A, and Type-C ports.

Model compatibility

  • Compatible with V-TAC portable power stations (300W, 500W, 1000W, 2000W).
  • Ensure the input voltage of your power station is compatible with the panel's output.
