V-TAC LED Flood Light Instruction Manual
Quick guide for V-TAC LED Flood Light (models VT-44035, VT-44055, VT-44104, VT-44204). Includes installation steps, wiring instructions, safety warnings, and technical specifications.
Quick answers from the manual
Quick answer
- This manual provides installation and safety guidelines for V-TAC LED Flood Lights (models VT-44035, VT-44055, VT-44104, VT-44204). Installation must be performed by a qualified electrician using a waterproof junction box. p. 1, 2
Key actions
- Turn off power before installation. p. 2
- Connect using a waterproof junction box (IP65 or above). p. 2
First start
- Ensure the surface is not prone to vibrations, mark hole positions, screw the bracket to the wall, mount the fixture, and connect the cable. p. 2
Maintenance and reset
- The light source is replaceable only by a professional. Do not remove the light source yourself as it voids the warranty. p. 2, 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Input Voltage | 220-240V | Operating voltage | p. 1 |
| IP Rating | IP65 | Ingress protection | p. 1 |
Where to find it in the PDF
- Technical Data p. 1
- Installation Instructions p. 2

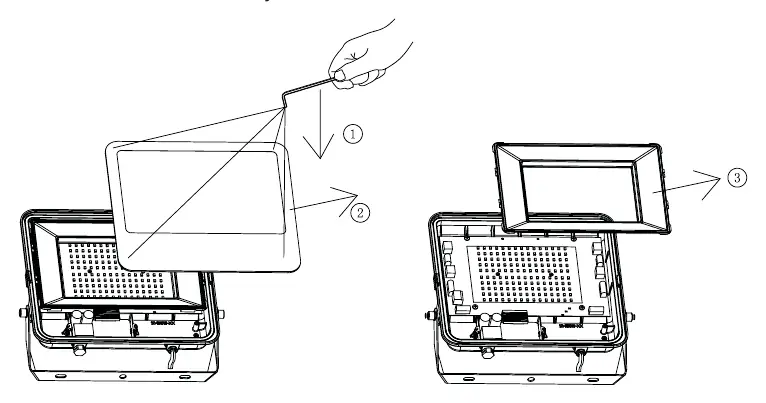

- Disassembly Diagram p. 3
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential installation and safety information for V-TAC LED Flood Lights. The product is designed for outdoor use and must be installed by a qualified electrician. Ensure the power is switched off before starting any work. The product requires a waterproof junction box (IP65 or above) for connection.
Technical Specifications
The V-TAC LED Flood Light series includes models VT-44035, VT-44055, VT-44104, and VT-44204. Key specifications include:
- Input Voltage: AC 220-240V, 50Hz
- IP Rating: IP65
- Operation Temperature: -20°C to +40°C
- Beam Angle: 115°
- Life Span: 25,000 Hours
- Body Type: Aluminium
Safety Warnings
- Installation must be performed by a qualified electrician.
- Ensure proper grounding throughout the installation.
- Do not install on surfaces prone to vibrations.
- Maintain a minimum distance of 1 meter from lighted objects.
- Do not use in areas with limited ventilation.
- The external flexible cable cannot be replaced; if damaged, the luminaire must be destroyed.
- Replace any cracked protective shield immediately.
Installation Instructions
- Ensure the power is switched off.
- Mark the hole positions for the bracket on the wall.
- Screw the retaining bracket to the wall using suitable screws (not supplied).
- Mount the bracket back to the fixture and adjust the floodlight to the desired position.
- Tighten the screw.
- Connect the main cable (H05RN-F3G1.0mm2 recommended) to the input lead using a waterproof junction box (IP65 or above).
- Ensure the waterproof screw is tightened.
- Switch on the power to verify operation.
Warranty and Maintenance
The product comes with a 5-year warranty valid from the date of purchase. The warranty covers manufacturing defects only and does not apply to damage caused by incorrect installation, abnormal wear and tear, or incorrect removal. The product is suitable for 10-12 hours of daily operation; usage for 24 hours a day will void the warranty. The light source is replaceable only by a professional; do not attempt to remove it yourself.
Practical help
Common problems
Product not working after installation
Check the waterproof junction box connection and ensure the power is switched on. Verify the line (-) connection.
Warranty voided
Do not operate for 24 hours a day (10-12 hours recommended). Do not remove the light source.
Before use
- Ensure power is turned off before starting installation.
- Verify the surface is not prone to vibrations.
- Ensure you have a waterproof junction box (IP65 or above).
- Check that the installation is performed by a qualified electrician.
- Verify the input voltage is AC 220-240V.
Specs in practice
- Input Voltage
- AC 220-240V, 50Hz
- Operation Temperature
- -20°C to +40°C
Images and diagrams

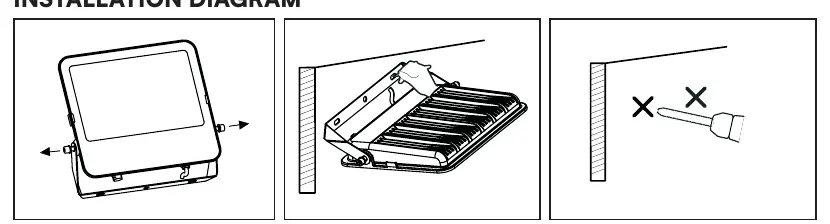

- The installation diagram shows the bracket mounting process.
- Wiring diagram indicates the connection to the main cable via a waterproof junction box.
Model compatibility
- Suitable for outdoor use.
- Not dimmable.
- Recommended cable: H05RN-F3G1.0mm2.
