Installation Guide for allen + roth Vanity with Top 1605VA-48-201-925

Quick guide from the manual

This vanity installation requires two adults and takes approximately 35 minutes to assemble, plus 24 hours for the silicone caulk to dry. Ensure you have all parts listed in the package contents before beginning. The vanity must be secured to the wall studs for safety and stability. Do not attempt to pry the top off the vanity, as this may cause damage.

Package Contents

The package includes the vanity base, the pre-assembled top, the backsplash, two doors, and two shelves. A touch-up pen is also provided for minor repairs.

Preparation and Tools

Before starting, ensure you have the following tools (not included):

• Phillips screwdriver
• Utility knife or scissors
• Silicone caulk
• Power drill with drill bit
• Measuring tape and level

Installation Instructions

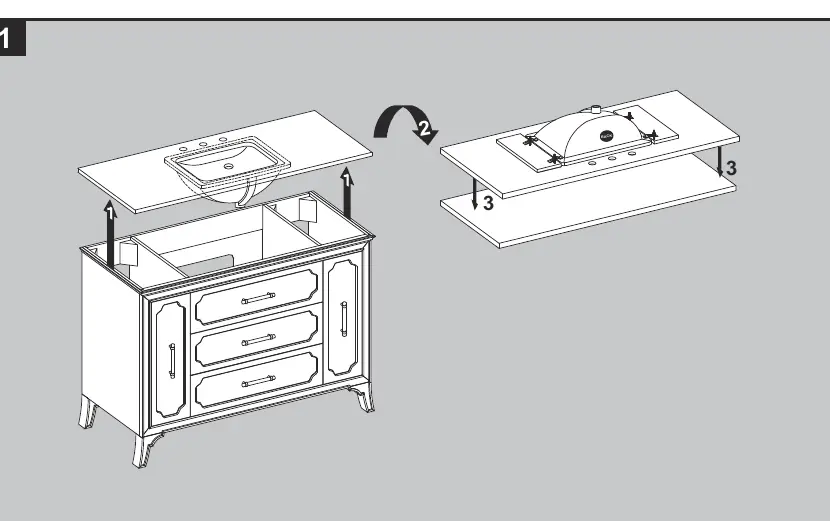

1. Removing the Top and Drawers

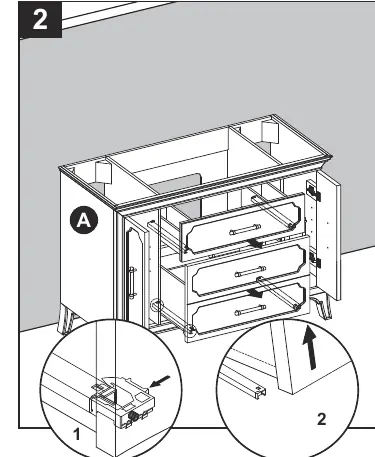

Remove the top from the vanity base. To remove the drawers, fully extend them, locate the plastic levers on the metal glide tracks, push the levers, and gently lift the drawer out.

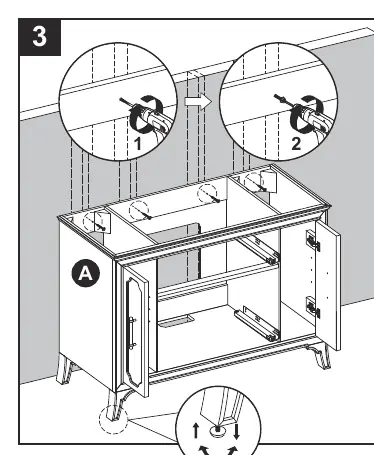

2. Positioning and Leveling

Place the vanity in its final location against the wall. Use the pre-assembled levelers on the bottom of each leg to level the unit. Twist counterclockwise to raise and clockwise to lower the vanity.

3. Securing to the Wall

Once level, drill a hole through the vanity mounting area into the wall studs. Secure the vanity to the wall using appropriate mounting hardware (not included). Securing to two wall studs is recommended for increased stability.

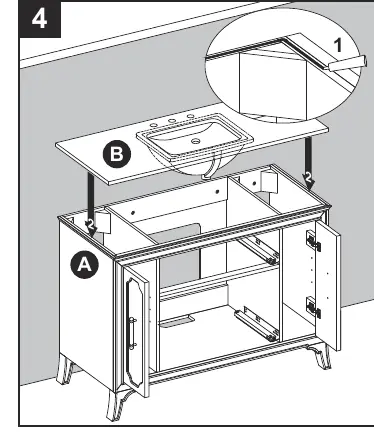

4. Installing Top and Backsplash

Apply stain-free silicone caulk to the top edge of the vanity. With the help of another adult, lower the top onto the vanity. Apply silicone caulk to the unpolished side and bottom of the backsplash, then position it on the top against the wall. Wipe away excess caulk and allow 24 hours to dry.

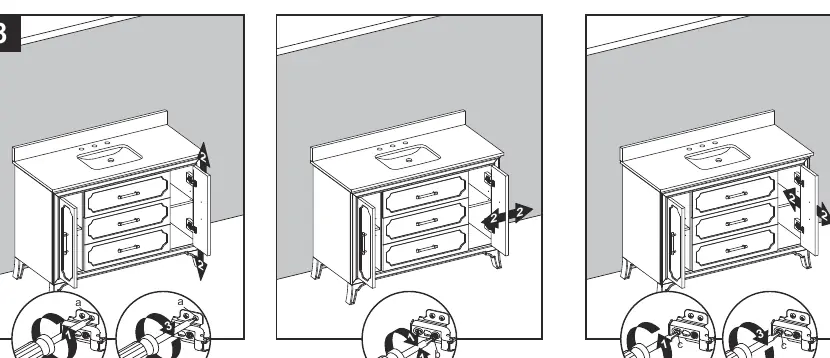

5. Drawer and Door Adjustments

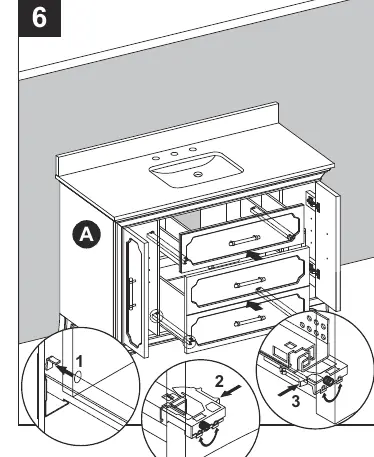

To reinstall drawers, slide them into the rear glide catch and lock them in place. Use the adjustment wheel on the glide tracks to raise or lower the drawer box. For door adjustments, use the hinge screws: (a) for up/down, (b) for left/right, and (c) for in/out.

Care and Maintenance

Dust the vanity regularly with a soft cloth. Clean with a gentle, non-abrasive household cleaner and dry immediately. For the stone top, use standard marble cleaning agents. Warning: Do not use products containing acetone, lemon, vinegar, or other acids, as these will damage the stone surface. Periodically reseal the stone top using an appropriate stone sealer.
