Veratron VL 2-IN-1 Voltmeter and Hour Counter User Manual
Quick guide for the Veratron VL 2-IN-1 Voltmeter and Hour Counter. Includes installation dimensions, technical specifications, mounting instructions, and accessory details.
Quick answers from the manual
Quick answer
- The Veratron VL 2-IN-1 is a digital instrument that combines an engine hour counter and a voltmeter. It automatically toggles between the two values every 10 seconds and operates on 12V, 24V, or 48V systems. p. 2
Key actions
- Mounting the device p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Nominal voltage | 12 / 24 / 48 V | Supported system voltages | p. 2 |
| Operating voltage | 9 – 60 V | Actual operating range | p. 2 |
| Installation diameter | 52 mm | Required panel hole size | p. 2 |
| Protection class | IP67 front | Water and dust resistance | p. 2 |
Where to find it in the PDF
- Product Overview p. 1, 2
- Technical Data and Dimensions p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide

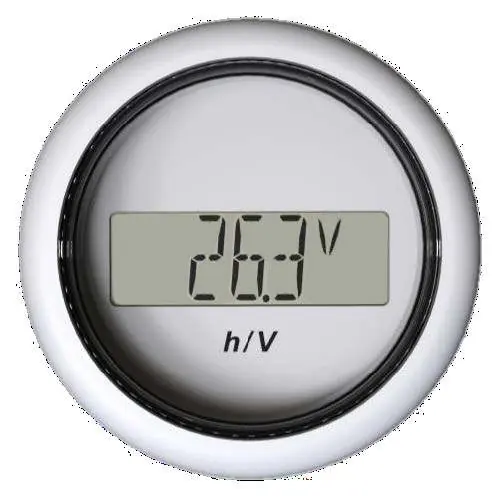

The Veratron VL 2-IN-1 is a digital instrument designed to display both engine hours and battery voltage. It features an automatic display toggle every 10 seconds, allowing for hands-free operation. It is suitable for various applications, including marine engines, static generators, and material handling machines.
Product Overview
The instrument features a bright, readable LCD with a white LED backlight. It is designed to replace traditional mechanical hour counters with a more versatile digital solution. The device is compatible with 12V, 24V, and 48V systems.
Technical Specifications
- Operating Voltage: 9 – 60 V DC (includes reverse polarity and over-voltage protection)
- Current Consumption: ≤ 50 mA @ 12 V
- Display: Segment TN+ with white LED backlight
- Installation Diameter: 52 mm
- Installation Depth: 46 mm
- Protection Class: IP67 (front), IP52 (rear)
- Operating Temperature: -40 to +80°C
- Storage Temperature: -40 to +85°C
- Connector: Tyco/Hirschmann MQS plug, 8 pin
- Flammability: V0 acc. to UL-94
Installation and Mounting
The device is designed for front panel mounting. It can be installed using the included Spinlock Nut or the optional flush mount kit. Ensure the mounting hole diameter is 52 mm. The bezel can be customized with different shapes and colors to match your dashboard.
Accessories and Variants
The product is available in black and white variants with various bezel shapes (round, triangular, flat). Accessories included in the box (depending on the specific kit) may include:
- Cable 8 wires
- Spinlock Nut 52 mm
- Various Bezel styles (Flat, Triangular, Round in Black, White, or Chrome)
Compliance
The device complies with CE, UKCA, Reach, and RoHS standards.
Practical help
Common problems
Display not toggling
The display is designed to automatically toggle between hours and voltage every 10 seconds. If it does not, ensure the power supply is stable and within the 9-60V range.
Installation fit issues
Ensure the mounting hole is exactly 52 mm in diameter. The installation depth required is 46 mm.
Before use
- Verify the power supply is within the 9-60V DC range.
- Ensure the mounting panel has a 52 mm diameter hole.
- Check that the correct bezel style is selected for your dashboard.
- Confirm the Tyco/Hirschmann MQS 8-pin connector is available for wiring.
- Ensure the environment is within the -40 to +80°C operating temperature range.
Specs in practice
- Operating Voltage
- 9-60V DC range allows use in 12V, 24V, and 48V systems with built-in protection.
- Installation Diameter
- Standard 52 mm hole required for dashboard mounting.

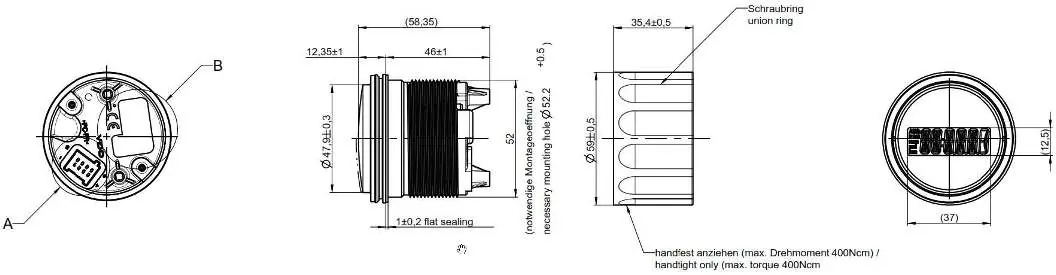

Images and diagrams
- The dimensions diagram shows a 52 mm mounting hole requirement.
- The installation depth is 46 mm.
- The diagram indicates the use of a union ring (Schraubring) to secure the gauge, with a maximum hand-tight torque of 400 Ncm.
Model compatibility
- Compatible with 12V, 24V, and 48V electrical systems.
- Requires Tyco/Hirschmann MQS 8-pin connector.
