Installation Instructions for Vista 1050KM Linear LED Floodlight
Quick installation guide for the Vista 1050KM Linear LED Floodlight. Includes step-by-step mounting instructions, wiring connections, and maintenance tips for optimal performance.
Table of contents
Quick guide from the manual
The Vista 1050KM is a commercial-grade linear floodlight designed for above-grade outdoor installation. This document provides the necessary steps for mounting the luminaire to a junction box and making the required electrical connections. Always ensure compliance with the National Electrical Code (NEC) and local regulations.
Installation and Mounting
- Ensure the electrical supply is turned off at the circuit breaker before beginning any installation or servicing.
- Thread the SS Knuckle Stem into the Junction Box Lid and tighten fully.
- Loosen the Knuckle Aiming Screw and rotate the Knuckle Stem to align with the SS Knuckle Stem.
- Route the luminaire supply conductors into a wet-location-rated junction box (provided by others).
- Connect the supply conductors to the luminaire conductors, observing proper polarity: connect line to black, neutral to white, and ground to green. Use UL-recognized wire connectors.
- Secure the Junction Box Lid onto the Junction Box using the four provided screws and tighten.
- Position the Knuckle Stem over the SS Knuckle Stem and lock it in place using the Knuckle Set Screw(s).
- Adjust the aim of the fixture as desired and firmly re-tighten the Knuckle Aiming Screw(s).
- Restore power to the luminaire and verify proper operation.
Maintenance
To ensure proper operation and efficiency, the lens must be kept clean and free of debris. Regularly remove dirt, dust, leaves, trash, and mineral deposits from water. A scheduled maintenance program is recommended.
Safety Warnings
- Heat Warning: The luminaire can become hot during operation. Take care when selecting the mounting location.
- Compliance: The luminaire must be installed and grounded in accordance with the National Electrical Code (NEC) and local codes.
- Certification: This product is UL listed for above-grade installation only.
Practical help
Common problems
Luminaire does not turn on
Verify that the electrical supply is on at the circuit breaker and that all wiring connections (Line to Black, Neutral to White, Ground to Green) are secure.
Reduced light output or efficiency
Clean the lens to remove accumulated dirt, dust, leaves, or mineral deposits.
Before use
- Ensure electrical supply is off at the circuit breaker.
- Verify the junction box is rated for wet locations.
- Ensure all wiring connections use UL recognized wire connectors.
- Confirm installation complies with NEC and local codes.
- Check that the lens is clean and free of debris.
Specs in practice
- Wiring Polarity
- Black wire is Line, White wire is Neutral, Green wire is Ground.
Images and diagrams

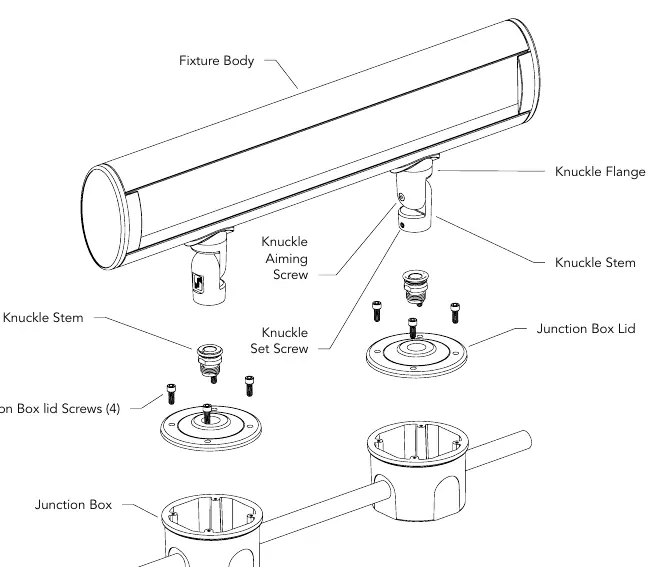

- The assembly diagram illustrates the connection sequence between the Fixture Body, Knuckle Stem, and the Junction Box Lid.
- The diagram highlights the location of the Knuckle Aiming Screw and Knuckle Set Screw, which are essential for adjusting and locking the fixture position.
Model compatibility
- Must be installed in a wet-location-rated junction box (not included).
- For above-grade installation only.
