Installation Instructions for Vista 1054YM Commercial Series Linear Floodlight
Learn how to install and maintain your Vista 1054YM Commercial Series Linear Floodlight. This guide covers wiring connections, mounting procedures, and safety precautions for proper operation.
Table of contents
Quick Installation Guide
This document provides installation instructions for the Vista 1054YM Commercial Series Linear Floodlight. Ensure all electrical work complies with the National Electrical Code (NEC) and local regulations. The luminaire is UL listed for above-grade installation only.
Safety and Maintenance
Safety Warning: The luminaire can become hot during operation. Exercise caution when selecting the installation location.
Maintenance: To ensure proper operation and efficiency, keep the lens clean and free of dirt, dust, leaves, trash, and mineral deposits from water. A regular scheduled maintenance program is recommended.
Installation Procedure
- Ensure the electrical supply is turned off at the circuit breaker before starting installation or servicing.
- Thread the Luminaire Supply Conductor cable through the Cord Seal and the Yoke Mount Bushing through the Yoke center hole into the Junction Box Lid. Tighten the Yoke Mount Bushing fully.
- Route the luminaire supply conductors into a wet location-rated junction box (provided by others).
- Connect the conduit supply conductors to the luminaire conductors, observing correct polarity: line to black, neutral to white, and ground to green. Use approved wiring methods.
- Secure the Junction Box Lid onto the Junction Box using the provided screws and tighten.
- Adjust the aim of the fixture and firmly re-tighten the Yoke Aiming Hex Nut(s) located underneath the Yoke Decorative Caps.
- Re-assemble the Decorative Caps onto the Yoke.
- Tighten the Yoke Locking Set Screws to secure the aiming.
- Supply power to the luminaire and check for proper operation.
Practical help
Common problems
Fixture gets hot
Take care when locating luminaires to ensure adequate clearance and safety.
Improper operation or efficiency loss
Ensure the lens is kept clean and free of dirt, dust, leaves, trash, and mineral deposits from water.
Before use
- Ensure electrical supply is off at the circuit breaker.
- Verify the junction box is rated for wet locations.
- Use UL recognized wire connectors for all connections.
- Verify correct polarity: Line to black, neutral to white, and ground to green.
Images and diagrams

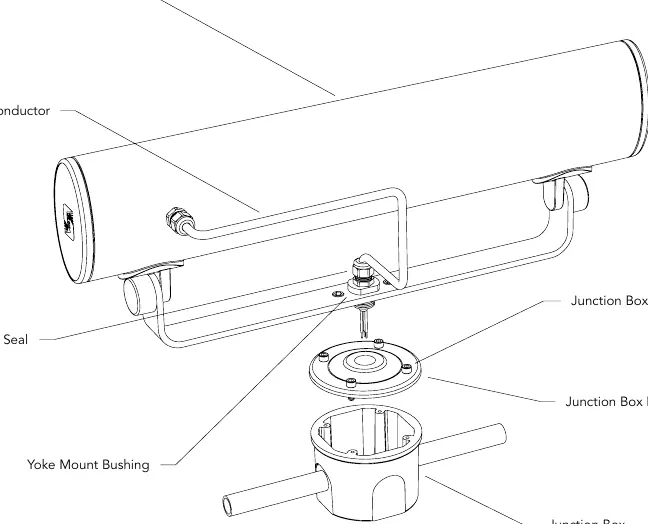

- The diagram illustrates the assembly of the fixture body to the junction box.
- Shows the routing of the supply conductor through the cord seal and yoke mount bushing.
- Identifies the junction box lid and screws required for mounting.
Model compatibility
- UL listed for above grade installation only.
- Requires a wet location rated junction box (provided by others).
