Specification and Installation Guide for Vista 1051WM RGBW Wall Mount
Quick guide for the Vista 1051WM RGBW Wall Mount. Includes specifications, wiring instructions, DMX control details, and installation requirements for this commercial linear floodlight.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Vista 1051WM is a commercial-grade linear floodlight designed for outdoor wall mounting. It features RGBW color mixing and DMX512-A/RDM control. Installation requires proper wall box mounting and separate wiring for power and DMX communication. This document provides the necessary technical specifications and installation requirements for the fixture.
Product overview
The 1051WM is an extruded aluminum fixture with die-cast end caps and mountings. It is environmentally sealed and features an adjustable aiming range of +/- 15 degrees. The fixture is designed for use in wet locations and is UL listed.
Installation and mounting
The fixture is designed for wall box mounting. The installation process involves the following:
- Wall Box: The die-cast A360 aluminum wall box includes two independent knockout holes suitable for 1/4-20 mount bolts (bolts provided by others).
- Concrete Mounting: A Concrete Pour Mask (CPM) is included for recessed mounting in concrete, along with an 8-32 rod kit for attachment to pour forms.
- Aiming: The wall mount allows for precise aiming with a +/- 15-degree adjustment range.
Wiring instructions
The fixture requires separate connections for power and communication to ensure proper operation and prevent interference:
- Power: Connect the 3-conductor power cable to the isolated power junction box within the Surface Box.
- Communication: Connect the DMX signal using 2 twisted pairs (in and out) plus drain to the isolated communication junction box within the Surface Box.
DMX control and operation
The fixture is equipped with an integral 4-channel DMX512-A/RDM compatible driver. Each driver has a unique 12-digit UID.
- Channel Mapping: The driver is factory-set to the following channel configuration: Channel 1 (Red), Channel 2 (Green), Channel 3 (Blue), Channel 4 (White).
- Configuration: The start channel can be changed during commissioning via RDM using the driver's 12-digit UID.
- Bus Capacity: The fixture consumes 1 Node on a standard 32-Node maximum DMX BUS.
Technical specifications
- Voltage: 120-277 VAC
- Wattage: 34 W (MAX)

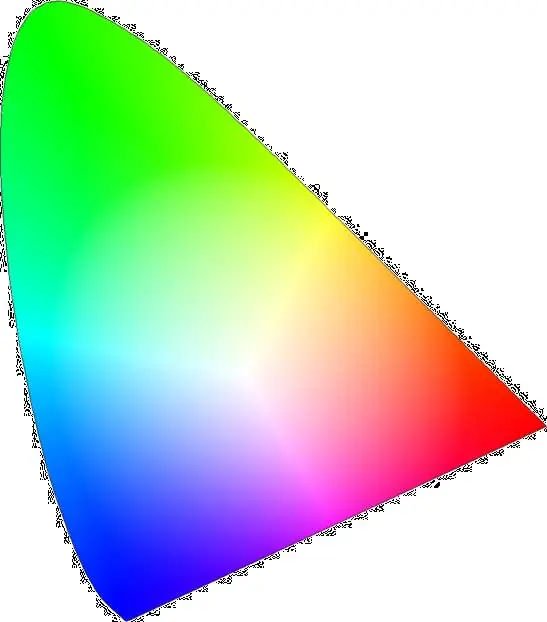

- Color: RGB and Tunable White (2200K - 6000K)
- CRI (White): 90 CRI minimum at 3000K
- Dimensions: 13 11/32" W x 6 3/4" H (Fixture); 8" DIA x 2 3/4" D (Wall Box)
Practical help
Common problems
Fixture not responding to DMX commands
Ensure the DMX controller is compatible with DMX512-A/RDM protocols and verify that the fixture's 12-digit UID is correctly recognized on the DMX bus.
Mounting hardware missing
The fixture requires 1/4-20 bolts for surface mounting, which are not included with the product and must be supplied by the installer.
Before use
- Verify input voltage is within the 120-277 VAC range.
- Ensure the mounting surface can support the weight of the fixture.
- Confirm that the DMX controller supports DMX512-A/RDM.
- Check that all necessary fasteners (1/4-20 bolts) are available for installation.
- Verify the intended distribution type (Narrow, Medium, Wide, etc.) matches the project requirements.
Images and diagrams

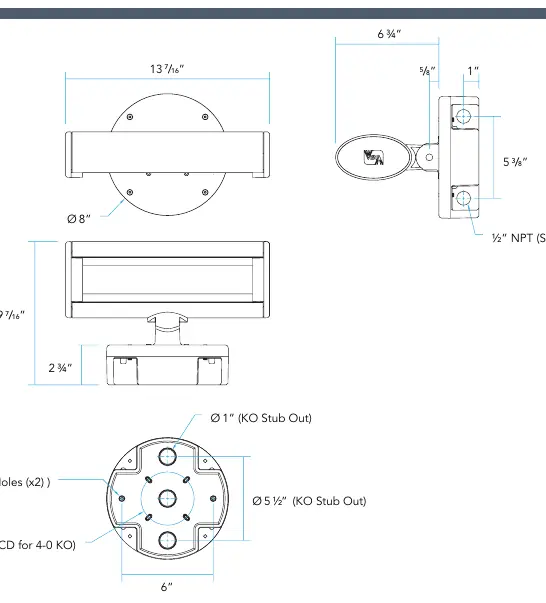

- The dimensions diagram illustrates the fixture width (13 7/16") and height (6 3/4"), as well as the wall box diameter (8") and depth (2 3/4").
- The wiring diagram highlights the separation between the power junction box and the communication junction box to prevent signal interference.
Model compatibility
- Compatible with DMX512-A/RDM controllers.
- Suitable for wet locations (UL listed).
- Includes Concrete Pour Mask (CPM) for recessed concrete installations.
