User Manual for WEN 4015 14-Inch Electric Chainsaw
Quick guide for the WEN 4015 14-Inch Electric Chainsaw. Includes assembly, chain tensioning, operation, safety, maintenance, and troubleshooting steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This electric chainsaw is designed for cutting wood. Before operating, ensure you have read all safety warnings. Always wear protective gear, including eye and hearing protection. Check the oil level and chain tension before every use. Never operate the saw above shoulder height or in high wind conditions. Always maintain a firm grip with both hands.
Product Description
The WEN 4015 is a 14-inch electric chainsaw featuring a 120V, 9A universal motor. It includes an auto-oiling system, a cord strain relief notch, and a safety button to prevent accidental starting. The tool is double-insulated, eliminating the need for grounding.
Assembly and Adjustments
Filling the Auto Oil System: Remove the oil cap and fill the reservoir with bar and chain oil until full. Check the level every 10 minutes of use.
Installing the Guide Bar and Chain:
- Place the saw on a firm surface and remove the blade cover nut.
- Wrap the saw chain around the guide bar, ensuring teeth point in the direction of rotation.
- Align the guide bar slot with the bolt and chain tensioning pin.
- Replace the cover and tighten the nut.
Tensioning the Chain: The chain is properly tensioned if it can be lifted 1/8 inch (3 mm) from the center of the guide bar. Use the chain tensioning screw to adjust. Clockwise tightens, counter-clockwise loosens.
Operation
Starting the Saw: Press the safety button and then squeeze the trigger. Release the trigger to stop.
Felling a Tree: Plan an escape route. Make a notch 1/3 the diameter of the tree, then make the felling back cut at least 50mm higher than the horizontal notching cut.

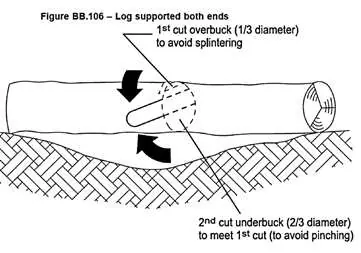

Bucking a Log: If supported along the entire length, cut from the top (overbuck). If supported on one end, cut 1/3 from the underside (underbuck), then finish with an overbuck. If supported on both ends, cut 1/3 from the top, then finish with an underbuck.

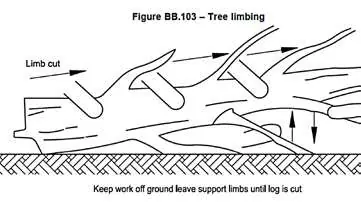

Limbing: Remove small limbs in one cut. Cut branches under tension from the bottom up to avoid binding.
Maintenance and Storage
Unplug the tool before any maintenance. Keep air vents free of debris. Wipe the housing with a soft, moist cloth. Routinely clean dust from the tension housing and oil outlet. Before storing, remove tension from the chain and drain the oil tank. Store in a cool, dry place.
Troubleshooting
If the saw does not turn on, check the power connection, extension cord size, and ensure the safety button is pressed. If the bar or chain overheats, check the oil level and chain tension. If the chain is loose, allow it to cool and adjust the tension.
Specifications
Motor: 120V, 60 Hz, 9A. Speed (No Load): 6500 RPM. Max Chain Speed: 39 Feet per Second. Saw Chain: 14 inches. Oil Tank Capacity: 5.1 fl. oz. (150mL). Weight: 7.7 lbs.
Practical help
Common problems
Saw does not turn on
Check if plugged in, ensure extension cord is secure and properly sized, and ensure the safety button is pressed before the trigger.
Bar or chain overheating
Check chain tension, ensure oil level is sufficient, do not force the cut, and sharpen or replace the chain if dull.
Loose chain
Allow the chain to cool, adjust tension, check for correct installation, or replace the guide bar if worn.
Poor cut quality
Adjust chain tension, ensure correct installation, sharpen or replace the chain, or replace the guide bar.
Before use
- Check oil level in the tank.
- Check chain tension (should lift 1/8 inch from bar).
- Inspect housing, chain, and guide bar for damage.
- Wear protective gear (glasses, hearing protection, gloves).
- Ensure workspace is clear of people and animals.
- Ensure extension cord is suitable for outdoor use.
Specs in practice
- Oil Tank Capacity
- 5.1 fl. oz. (150mL) capacity for bar and chain oil.
- Max Chain Speed
- 39 feet per second for efficient cutting.
- Product Weight
- 7.7 lbs for maneuverability.
Images and diagrams
- Figure 1-3: Guide bar and chain installation steps.
- Figure 4: Chain tensioning check (1/8 inch gap).
- Figure 9: On/Off switch operation.
- Figure 10: Felling escape routes.
- Figure 11: Felling undercutting technique.
Model compatibility
- Compatible with 14" Oregon saw chain, model 91PJ052X.
- Compatible with Oregon saw blade, model 140SDEA041.
