User Manual for Wiltec 63855 2000kg Axle Traverse
Quick guide for the Wiltec 63855 2000kg Axle Traverse. Includes assembly instructions, safety precautions, operating steps, and parts list.
Quick answers from the manual
Quick answer
- The Wiltec 63855 is a 2000 kg capacity axle traverse designed to be used with a car jack to lift vehicles safely. p. 1, 3
Key actions
- Assemble by removing the car jack saddle, placing the traverse, and tightening the connecting screw. p. 3
First start
- Read all safety instructions, ensure the traverse is perpendicular to the jack housing, and use the included safety chains. p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Capacity | 2000 kg | Maximum load weight | p. 3 |
Where to find it in the PDF
- Safety Instructions p. 3
- Assembly p. 3
- Operation p. 4
- Parts List p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Wiltec 63855 is an axle traverse with a maximum load capacity of 2000 kg (4000 lbs). It is designed to be used in conjunction with a compatible car jack to lift vehicles. Always ensure the traverse is mounted perpendicularly to the car jack housing and that the load is centered. Safety chains must be used to prevent overcharging.
Safety instructions
- Do not exceed the maximum capacity of 2000 kg.
- Always use the included safety chains and ensure they are properly fixed.
- Do not use the traverse to lift a person.
- The traverse is not suitable for aircraft.
- Do not move a vehicle while it is sitting on the traverse.
- The traverse is a lifting device only; immediately after lifting, support the vehicle with appropriate jack stands.
- Check the device for loose or damaged parts before every use.
- Wear appropriate protective equipment, such as gloves and safety goggles.
Assembly
Before assembling, read all safety instructions carefully.
- Remove the connecting screw and the existing saddle from your car jack (not included).
- Place the traverse onto the car jack.
- Spacer installation: For 3t low-profile jacks and 3t long-reach jacks, the spacer must not sit on the connecting screw. For other 3t and 4t car jacks, slide the spacer onto the connecting screw.
- Fix the connecting screw of the traverse and tighten it securely. Ensure the traverse is perpendicular to the car jack housing.
Operation
- Completely lower both saddle pads.
- Align each saddle pad with the vehicle's lifting points and center the weight over the car jack.
- Raise the traverse using the car jack until one saddle point is near the vehicle's lifting point.
- Raise the saddle pads until both make contact with the lifting points.
- Slowly lift the vehicle to the desired height. Ensure the traverse remains level and the load is centered.
- Place two jack stands at the recommended support points of the vehicle.
- Lower the vehicle onto the stands before beginning any work underneath.
Parts list
The device consists of the following main components:
- Holder
- Extension tubes
- Saddles
- Rubber pads
- Hardware (screws, washers, connecting bolt, spacer)
Manufacturer information
WilTec Wildanger Technik GmbH
Practical help
Common problems
Traverse is not level during lifting
Adjust the pads to ensure the traverse remains level.
Spacer installation confusion
For 3t low-profile and 3t long-reach jacks, do not place the spacer on the connecting screw. For other 3t and 4t jacks, slide the spacer onto the connecting screw.
Before use
- Check for loose or damaged parts
- Verify load is within 2000kg limit
- Ensure safety chains are included and fixed
- Confirm car jack is compatible and bolt is tightened
- Ensure traverse is perpendicular to jack housing
Specs in practice
- Max Capacity
- 2000 kg (4000 lbs)
Images and diagrams

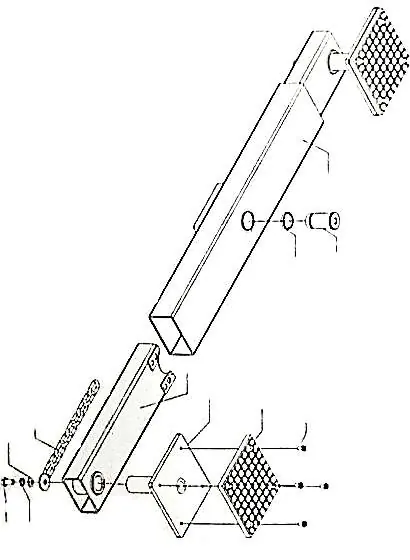

- The exploded view illustrates the assembly of the holder, extension tubes, saddles, and hardware components.
Model compatibility
- Requires a separate car jack (not included).
- Not appropriate for aircraft use.
