User Manual for Zhongshan 15T-4S Remote Control

Quick Start Guide

Follow these steps to set up and sync your remote control with your ceiling fan.

Initial Setup

1. Restore power to the ceiling fan.
2. Install four 1.5-volt AAA batteries (provided).
3. Press the Power button to turn the unit ON/OFF.
4. Use the Light button to operate the light.
5. Use the Fan button to turn the fan ON/OFF.
6. Use the Heater button to turn the heater ON/OFF.

Syncing the Remote

1. Shut off power to all fans at the wall switch.
2. At the circuit breaker, reset the power (turn OFF and back ON) for the specific fan you are programming.
3. Within 30 seconds of restoring power, turn the wall switch back on.
4. Push and hold the Sync button for 5-10 seconds until the light on the fan flashes 3 times.
5. Test the speed settings to ensure functionality. If it does not work, repeat the process from step 1.

Remote Control Functions

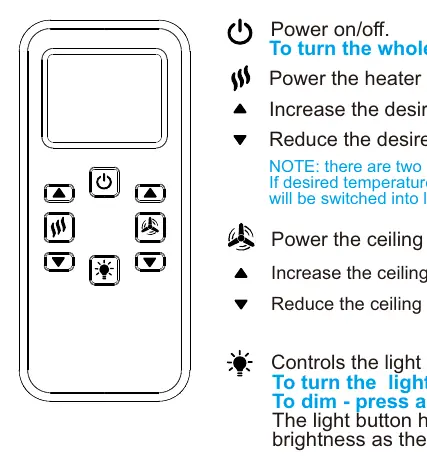

The remote allows for independent control of the fan, light, and heater.

• Power: Turns the whole unit ON or OFF.
• Heater: Turns the heater ON/OFF separately.
• Temperature Control: Use the Up and Down arrows to increase or decrease the desired room temperature.
• Fan Speed: Use the Up and Down arrows to adjust the ceiling fan speed.
• Light: Press and release to turn the light ON/OFF. Press and hold to dim the light. The light features an auto-resume function, maintaining the last brightness setting.

LCD Display

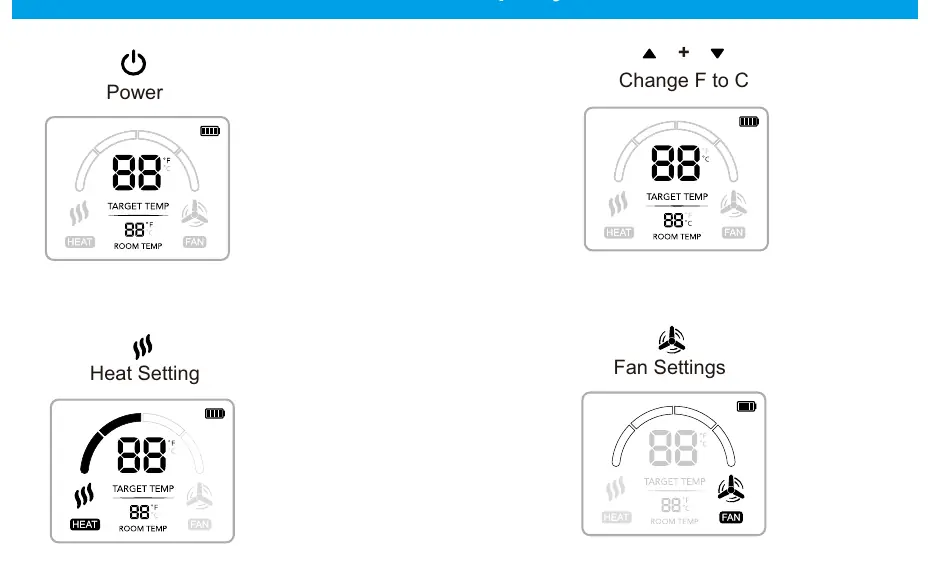

The LCD screen provides real-time feedback on your settings:

• Power Status: Indicates if the unit is active.
• Temperature: Displays both the target temperature and the actual room temperature.
• Heat Setting: Shows the current heating status.
• Fan Settings: Shows the current fan speed status.
• Units: You can toggle between Fahrenheit and Celsius.

PTC Heater Operation

The heater is designed for supplemental heat and should not replace your home's main heating source. The temperature range is 40°F to 99°F (4.4°C to 37.2°C).

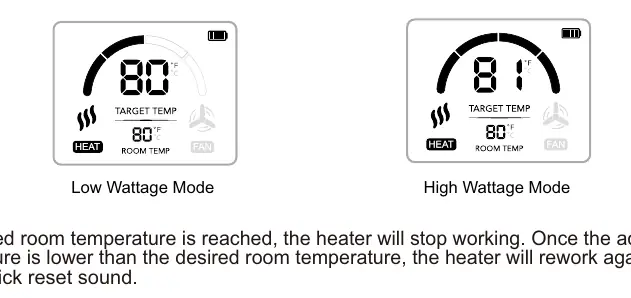

• Low Wattage Mode: Automatically activates when the desired temperature is set to ≤ 80°F (26°C).
• High Wattage Mode: Automatically activates when the desired temperature is set to > 80°F (26°C).
• Safety Features: The heater includes a built-in thermostat that cuts power if the unit overheats (at 185°F/85°C). You will hear a click sound when this activates or resets.
• Cool Down: The small heater fan will continue to run for several minutes after the heater stops to cool down the PTC element.

Maintenance

• Inspection: Due to natural fan movement, check support connections, brackets, and blade attachments twice a year to ensure they are secure.
• Cleaning: Clean the fan periodically using a soft brush or lint-free cloth. Do not use water, as it may damage the motor or cause electrical shock.
• Lubrication: The motor has permanently lubricated sealed ball bearings and does not require oiling.
• Safety Warning: Always turn off power at the electrical panel before performing repairs. Do not touch the heater while it is working or for at least 1 hour after it stops.
