Quick answers from the manual

Quick answer

  • To change the cut-off wheel, raise the saw, open the swing guard, engage the spindle lock, and loosen the arbor bolt. Always perform a ring-test on the new wheel before installation. p. 9, 10

Key actions

  • Mounting the saw p. 8
  • Adjusting angle cuts p. 11

First start

  • Connect to 120VAC grounded outlet, slide the trigger lock, and squeeze the trigger. Run for at least 30 seconds to check for abnormal noise or vibration. p. 10

Problems and fixes

Tool will not start

Check power, circuit breaker, or thermal reset.

p. 13

Maintenance and reset

  • If the thermal reset breaker trips, turn off the tool, allow it to cool, and press the reset button. p. 13

Technical specifications

Parameter Value Meaning Pages
Electrical Rating 120VAC / 60Hz / 15A Power requirements p. 7
Motor No Load Speed 4200 RPM Speed of the motor p. 7

Where to find it in the PDF

  • Specifications p. 7
  • Operation p. 9, 10, 11
  • Maintenance p. 12, 13
  • Parts List p. 14, 15
Table of contents

Manual images

Click an image to enlarge
Bauer 14" Abrasive Cut-Off Saw Page 8 Figure A: Removing Cut-Off Wheel Page 9 Figure B: Cut-Off Wheel Ring-Test Page 10 Figure C: Cut-Off Wheel Hardware Page 10 Angle Cut Set Up Page 11

Quick Guide from the Manual

This manual provides essential safety, operation, and maintenance instructions for the Bauer 14" Abrasive Cut-Off Saw (Model 20713E-B). Always read the full safety information before use. Key operations include mounting the saw to a stable surface, performing a ring-test on new abrasive wheels, and adjusting the cutting depth and angle.

Safety Warnings

  • General: Keep work area clean and well-lit. Do not operate in explosive atmospheres. Keep children and bystanders away.
  • Electrical: Ensure the tool is plugged into a properly grounded outlet. Use a GFCI-protected supply in damp locations.
  • Personal: Wear ANSI-approved eye protection, dust mask, and hearing protection. Do not wear loose clothing or jewelry.
  • Kickback: Avoid pinching or snagging the wheel. Do not force the tool. Maintain a firm grip and do not stand in line with the rotating wheel.
  • Vibration: Prolonged use may cause injury. Take breaks and grip the tool lightly.

Setup and Mounting

The saw must be mounted to a workbench using appropriate hardware through the holes in the base. Ensure the surface is stable and level. The power supply requirement is 120VAC / 60Hz.

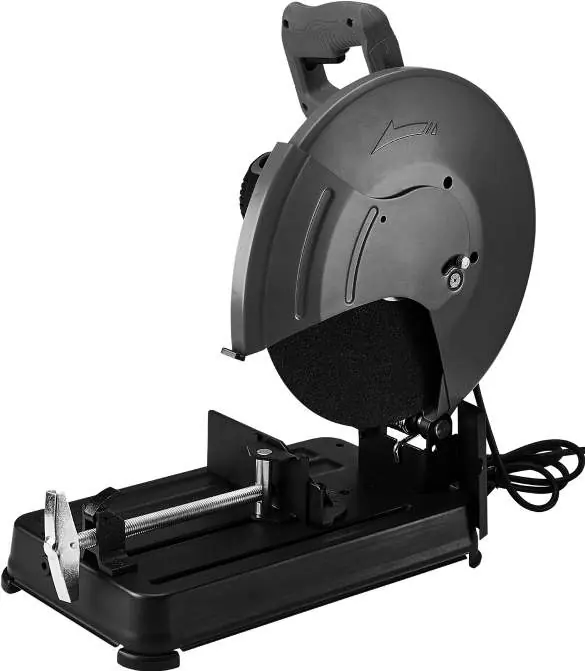

Bauer 14" Abrasive Cut-Off Saw
Bauer 14" Abrasive Cut-Off Saw

Operation

Figure A: Removing Cut-Off Wheel
Figure A: Removing Cut-Off Wheel
Figure B: Cut-Off Wheel Ring-Test
Figure B: Cut-Off Wheel Ring-Test
Figure C: Cut-Off Wheel Hardware
Figure C: Cut-Off Wheel Hardware

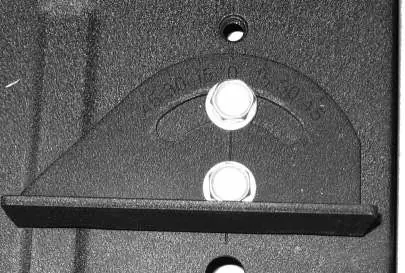

Angle Cut Set Up
Angle Cut Set Up

Wheel Changing

  1. Raise the saw and open the swing guard.
  2. Push the spindle lock towards the fixed guard and rotate the wheel until it locks.
  3. Loosen the arbor bolt and remove the flange washer, outer flange, and old wheel.
  4. Perform a ring-test on the new wheel: suspend it and tap it with a non-metallic object. A clear tone indicates an undamaged wheel; a dead sound indicates a crack.
  5. Install the new wheel, ensuring the concave side of the outer flange faces the wheel. Tighten the arbor bolt (do not overtighten).

Angle Cuts

To cut at angles up to 45°, loosen the two bolts on the angle scale, adjust to the desired setting, and retighten both bolts.

Using the Vise

Secure workpieces using the vise to prevent movement. Use the quick release and vise handle to tighten the jaw against the workpiece.

Maintenance

  • Before Each Use: Inspect for loose hardware, misaligned parts, cracked components, or damaged wiring.
  • After Use: Wipe external surfaces with a clean cloth.
  • Cleaning: Periodically blow dust out of motor vents using dry compressed air while wearing appropriate safety gear.
  • Storage: Keep accessories in a dry, frost-free area. Do not use wheels that have been dropped or bumped.

Manufacturer information

Harbor Freight Tools

Brand profile
Manufacturer website https://www.harborfreight.com Support https://www.harborfreight.com/customer-support

Practical help

Common problems

Tool will not start

Check power connection, circuit breaker, and thermal reset button. If the issue persists, it may be internal damage.

Tool operates slowly

Do not force the tool. If using an extension cord, ensure it is the correct gauge for the length and load.

Overheating

Allow the tool to work at its own rate. Check for wheel misalignment, wear, or blocked motor vents.

Before use

  • Inspect for loose hardware or damaged parts.
  • Ensure the power cord is in good condition.
  • Verify the guard is in place and moves freely.
  • Perform a ring-test on the abrasive wheel.
  • Secure the workpiece in the vise.

Specs in practice

120VAC / 60Hz / 15A
Electrical power requirements for the tool.

Images and diagrams

  • Figure A: Removing Cut-Off Wheel (Page 9)
  • Figure B: Cut-Off Wheel Ring-Test (Page 10)
  • Figure C: Cut-Off Wheel Hardware (Page 10)
  • Angle Cut Set Up (Page 11)

Model compatibility

  • Use only bonded reinforced or diamond cut-off wheels.
  • Wheel must be rated for at least 4200 RPM.
  • Do not use accessories requiring liquid coolants.
