LeoVince 14446EU LV One EVO Slip-On Exhaust Installation Guide
Quick installation and maintenance guide for the LeoVince 14446EU/14446EBU LV One EVO slip-on exhaust for Benelli TRK 702 / 702 X. Includes step-by-step fitting instructions, maintenance tips, and component lists.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation and maintenance instructions for the LeoVince LV One EVO slip-on exhaust (Art. 14446EU / 14446EBU) designed for Benelli TRK 702 and 702 X motorcycles. It is recommended that installation be performed by a professional. Ensure the exhaust system is completely cool before starting any work to prevent burns or damage to heat-sensitive components.
Installation

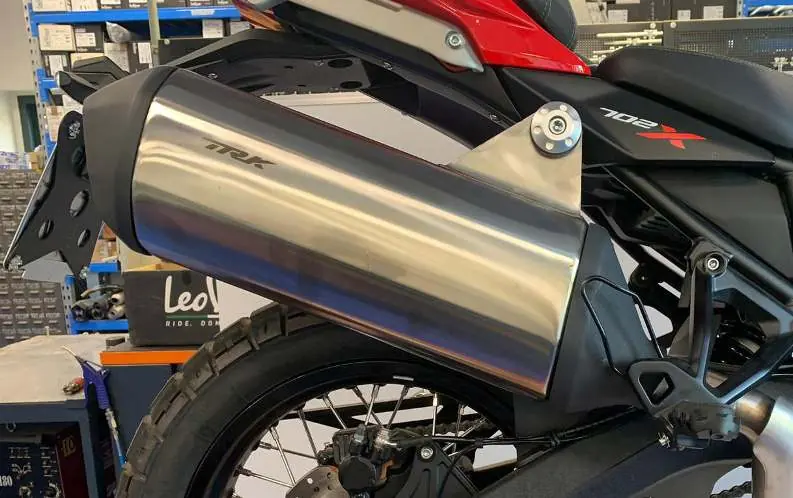

- Remove the original stock silencer and collector pipe.
- Verify that all mating surfaces are clean and in good condition.

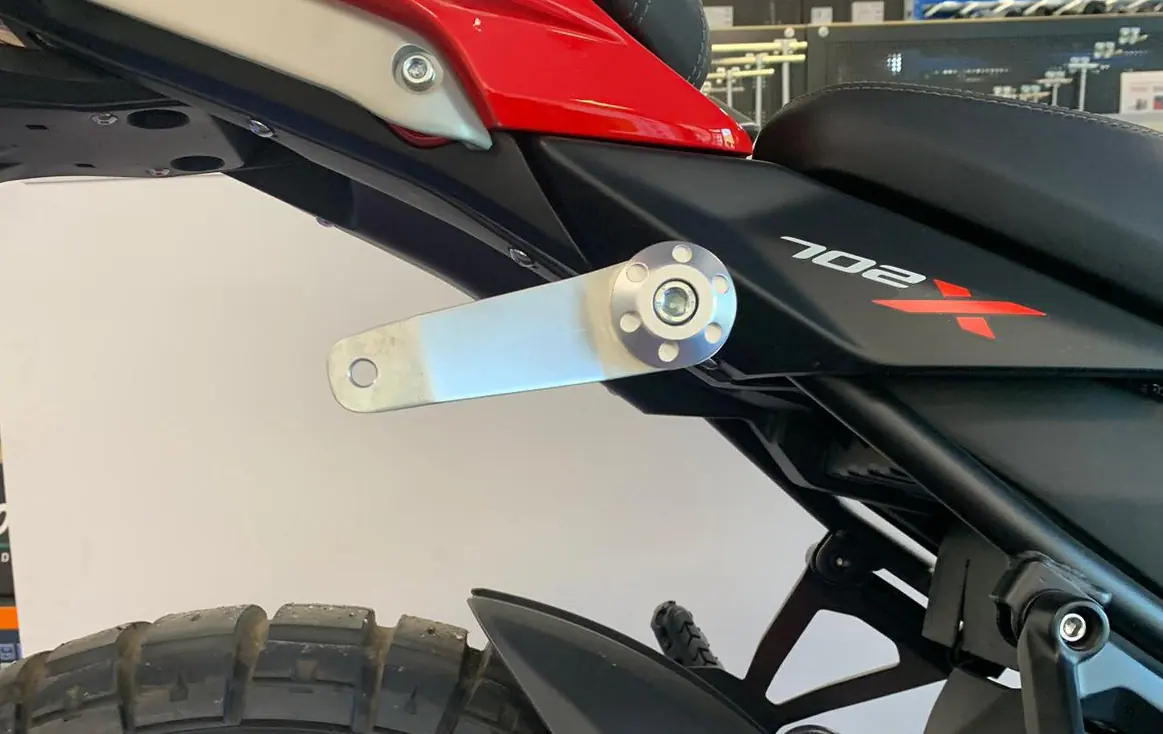

- Install the bracket to the motorcycle frame.

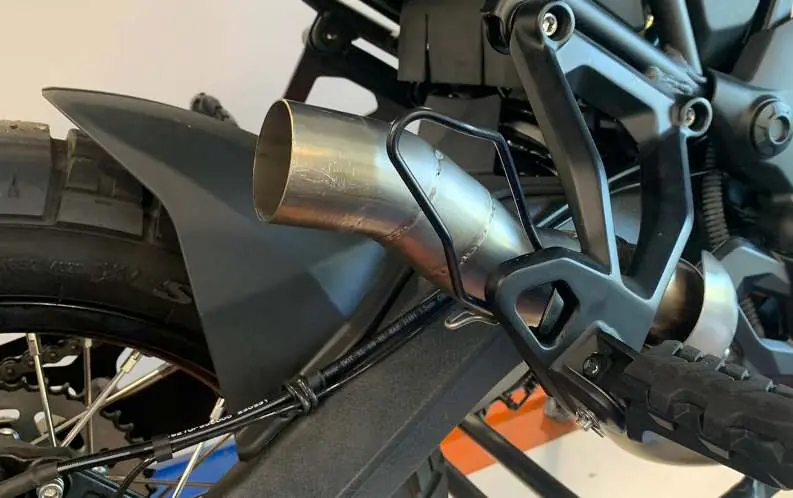

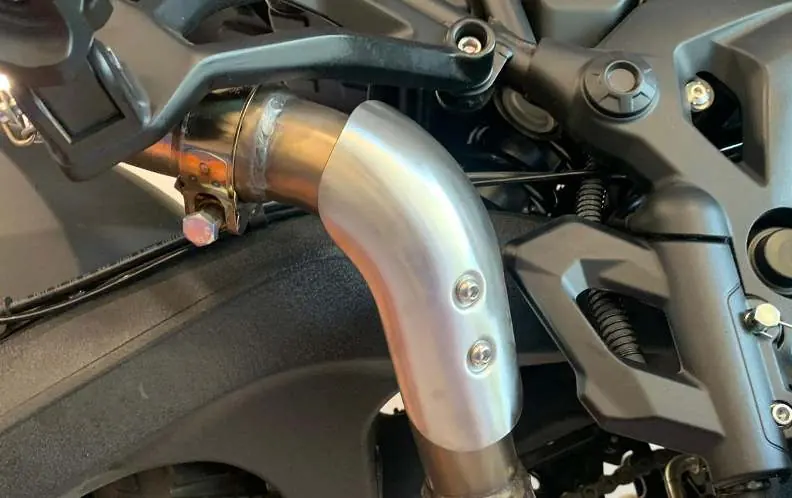

- Connect the LeoVince pipe to the original collector pipe.

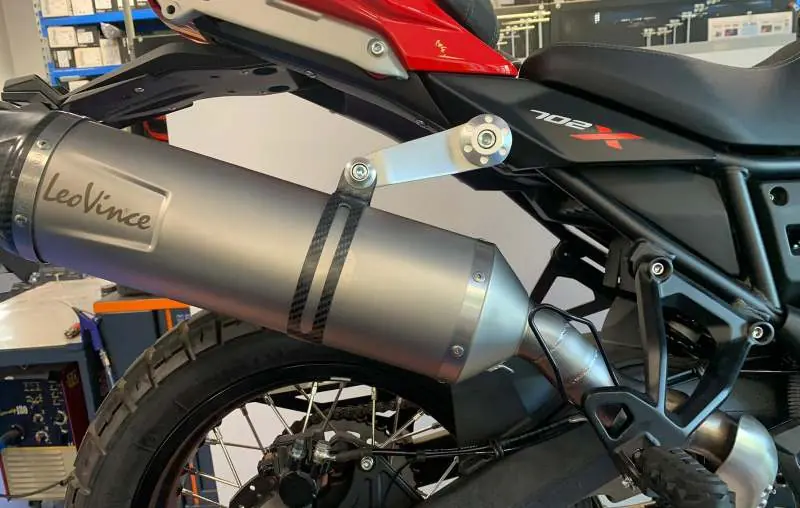

- Fit the clamp to the LeoVince silencer and install the silencer.

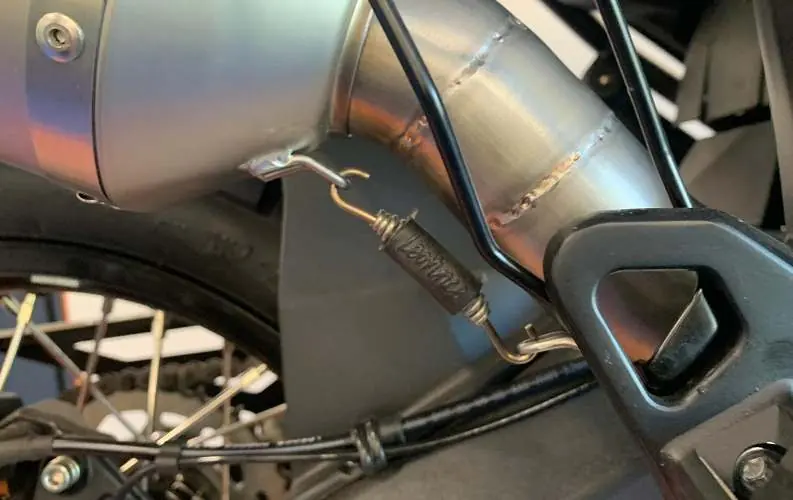

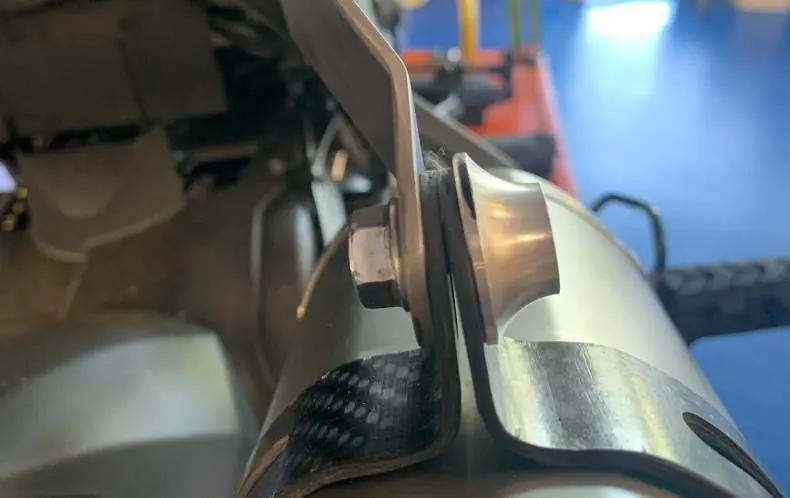

- Secure the parts using the provided springs or clamps.
- Check for correct alignment and ensure all fasteners are tightened securely.
- Start the engine, allow it to reach operating temperature, and check for any gas leaks.
If necessary, use a rubber mallet to gently tap connection pipes into place for a proper fit.
Maintenance
Periodically check all brackets and fasteners, as they may be affected by use. Replace sound-deadening material, seals, and other rubber parts as needed. For cleaning, use gasoline, diesel oil, or alcohol; do not use any solvents. Note that some discoloration of the silencer is normal due to heat and material properties. Any modification or tampering with the silencer is strictly prohibited and voids all responsibility from Belgrove Sp. z o. o.
Important usage notes
- During the first kilometers, the exhaust system will undergo a break-in period, which may result in slight gas leakage.
- After approximately 100 km, re-check and tighten all fasteners.
- It is normal for white smoke to appear during the first use, even after the engine is turned off.
Manufacturer information
LeoVince
Practical help
Common problems
Slight gas leakage during initial use
This is normal during the break-in period. Re-check and tighten all fasteners after approximately 100 km.
White smoke appearing from the exhaust
This is normal during the first use of the exhaust, even after the engine is switched off.
Discoloration of the silencer
This is a normal result of heat and the nature of the materials used.
Before use
- Ensure the exhaust surface is completely cool before starting work.
- Verify all mating surfaces are clean and in good condition.
- Have a rubber mallet available for fitting connection pipes.
- Check that all components from the supplied list are present.
- Ensure the motorcycle is in standard trim and good condition.
Specs in practice
- Break-in period
- The first 100 km of use where the system settles and fasteners should be re-checked.
- Cleaning agents
- Use only gasoline, diesel oil, or alcohol. Never use solvents.
Images and diagrams

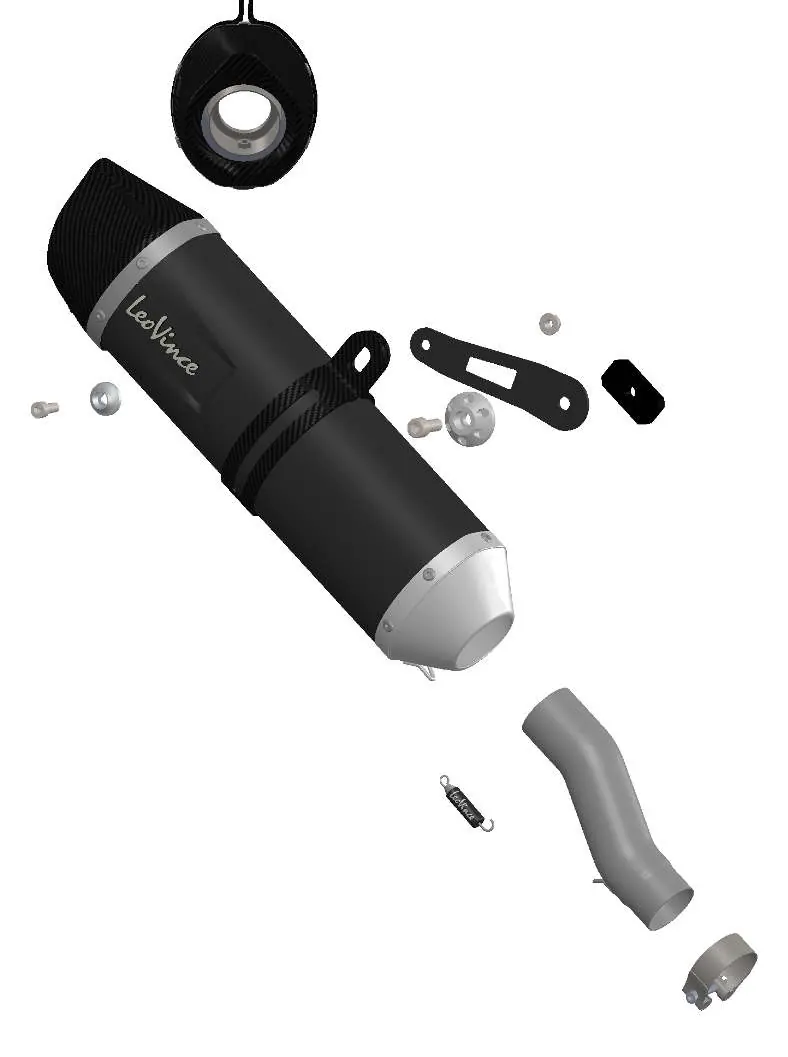

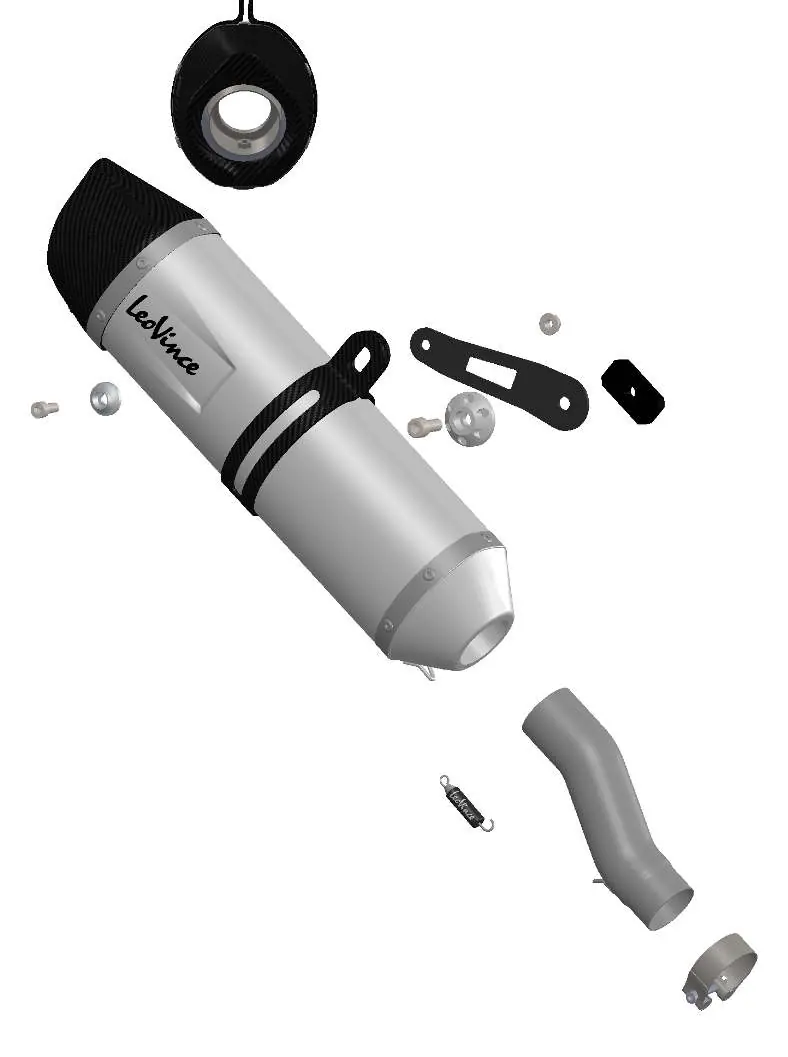

- The manual includes exploded-view diagrams showing the assembly sequence of the muffler, link pipe, carbon clamp, bracket, and hardware.
- Specific images illustrate the removal of stock parts and the installation of the new bracket and LeoVince pipe.
Model compatibility
- Compatible with Benelli TRK 702 and 702 X.
- Fits with original center stand.
- Fits with original panniers.
- Compatible with 35 kW versions.
