Installation Guide for Telran 790025 Solar Panel Mounting Structure
Installation guide for the Telran 790025 mounting structure, designed for two 200W solar panels. Includes parts list, dimensions, and assembly overview.
Quick answers from the manual
Quick answer
- The Telran 790025 is a mounting structure designed to hold two 200W solar panels on a pole. p. 1
Key actions
- Assemble the structure using the provided beams and bolt sets as detailed in the parts list. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Material | 40 x 40 x 2.5mm angle iron | Structural material with hot-dip galvanization | p. 1 |
Where to find it in the PDF
- Overview and Dimensions p. 1
- Parts List p. 2
Table of contents
Quick guide from the manual
This document provides installation instructions for the Telran 790025 mounting structure. It is designed to securely mount two 200W solar panels onto a pole. Please ensure all parts listed are present before beginning the installation.
Product Overview
The mounting structure is constructed from 40 x 40 x 2.5mm angle iron. The surface is hot-dip galvanized to provide corrosion protection, ensuring durability and wind resistance.
Dimensions
The structure features specific dimensions for the beams and mounting angles. Refer to the dimension drawing for precise measurements, including the 45-degree mounting angle for the solar panels.
Parts List
The following components are included in the kit:
- Solar panel fixing beam: 2 pcs
- Vertical beam: 2 pcs
- Inclined beam: 2 pcs
- Bottom beam: 2 pcs
- Back connecting beam: 3 pcs
- Bottom connecting beam: 2 pcs
- Pole clamp: 3 pcs
- Bracket bolt group M10 x 200: 6 sets
- 304 stainless steel bolt set (M10 x 35): 16 sets
- 304 stainless steel hexagon socket bolt assembly (M12 x 35): 4 sets
- Edge pressing block: 4 sets
- Medium pressure block: 2 sets
Installation Approach
The system is designed to be fixed to a pole using the provided pole clamps. Assemble the beams according to the structural diagram, ensuring all bolts are tightened securely. The structure supports two 200W solar panels.
Practical help
Before use
- Verify that the pole diameter is compatible with the provided pole clamps.
- Check that all 12 items listed in the parts list are present.
- Ensure the installation site is suitable for a pole-mounted structure.
- Verify that the solar panels to be installed are 200W models.
Images and diagrams
- The dimension drawing illustrates the 45-degree mounting angle and overall structural dimensions.

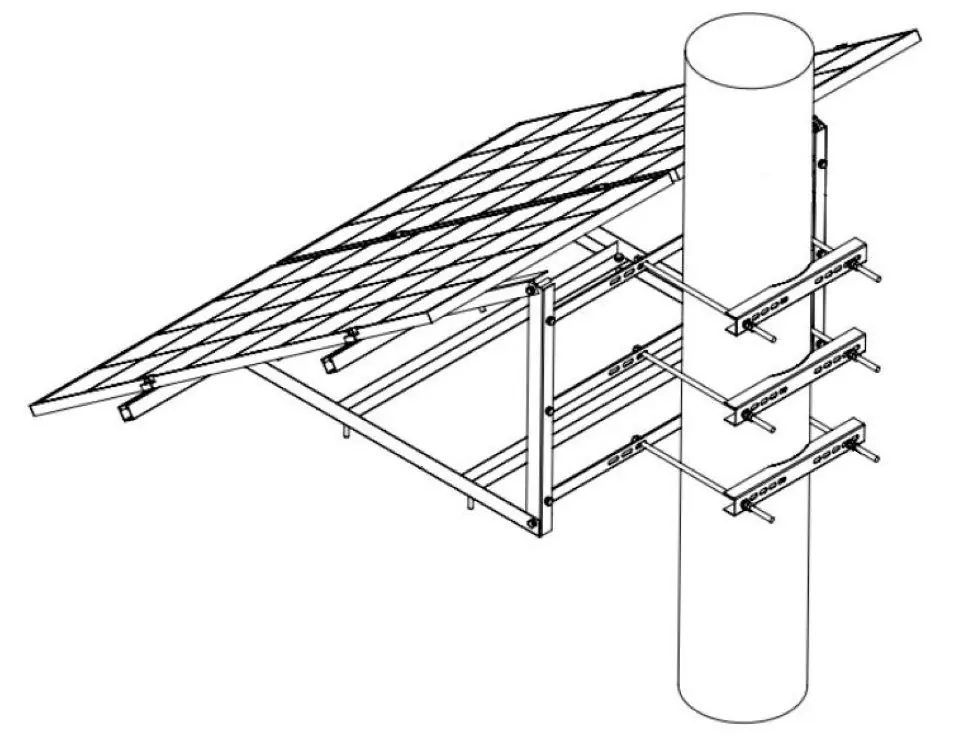

- The installation approach diagram shows how the beams connect to the central pole using clamps.
Model compatibility
- Designed specifically for two 200W solar panels.
- Requires a pole for installation.
